Glass Micanite PET Film Tape

Next > >

<< Previous

Send Inquiry

Product Code : 05

Product Description

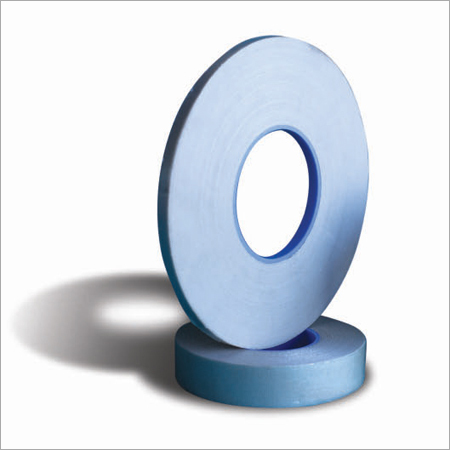

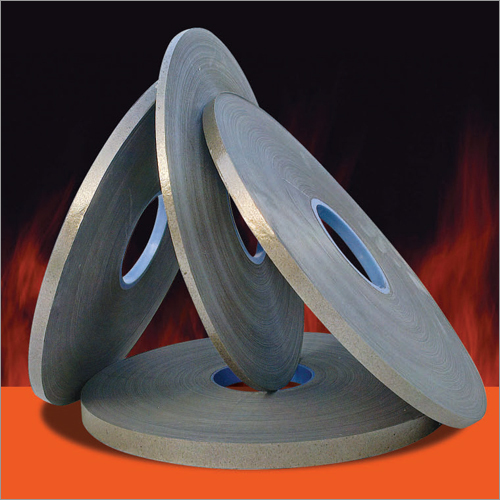

Glass or Micanite or PET Film Tape

Ruby Mica* Glass I Micanite I PET Film Tape is a lamination of single-layer high-quality muscovite natural mica splitting with PET film on one side and glass cloth on the other, bonded together using an isophthalate alkyd varnish. Due to the presence of mica in its natural form, this tape has high resilience, flexibility and impact-resistant properties.

Application

Inter-turn and main insulation on end-windings of hydro-generators and motors with Class F insulation. Also used as a winding-component for bus bars, pole-to-polejumpers, terminal bars, and various insulation purposes in turbo- generators.

Availability

Tape roll / Folium /Wrapper
Length 25 - 50 m
Width 15-1000 mm

Packing

Tapes are packed in airtight robust boxes protecting them from dirt, dust and moisture. The packaging also ensures safe transit and storage.

Storage

6 months at â¤ 20°C

Product Data

Properties	Test Method	Unit	Value
Nominal Thickness	IEC 60371-2	mm	0.12±0.02
Total Substance	IEC 60371-2	g/m2	190±30
Glass Cloth	IEC 60371-2	g/m2	35±3
PET	IEC 60371-2	g/m2	15-18
Resin Content	IEC 60371-2	%	18±4
Mica Content	IEC 60371-2	g/m2	100±20
Breakdown Voltage	IEC 60371-1	kV	>3
Tensile Strength	IEC 60371-2	N	>150
Volatile Content	IEC 60371-2	%	â¤2
